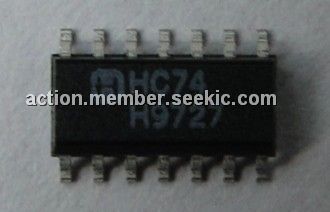

74HC74D

74HC74D, high-speed Si-gate CMOS device, SOP3.9, 7V, ±20mA, NXP Semiconductors

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~0.43 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.15~0.43

PartNumber:: 74HC74D

Brand:: NXP Semiconductors - nxp | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Daisy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-29

From Other Seller

Part Number:74HC74D
US $0.15 - 0.43
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The 74HC74D is a high-speed Si-gate CMOS device and is pin compatible with low power Schottky TTL (LSTTL). The device is specified in compliance with JEDEC standard no. 7A. The 74HC74D is a dual positive-edge triggered, D-type flip-flop with individual data (D) inputs, clock (CP) inputs, set (SD) and reset (RD) inputs; also complementary Q andQ outputs. The set and reset are asynchronous active LOW inputs and operate independently of the clock input.

Parametrics

74HC74D absolute maximum ratings: (1)Supply voltage, VCC: -0.5 +7.0 V; (2)Input diode current, IIK: ±20 mA; (3)Output diode current, IOK: ±20 mA; (4)Output source or sink current, IO: ±25 mA; (5)VCC or GND current, ICC, IGND: ±100 mA; (6)Storage temperature, Tstg: -65 to +150℃; (7)Power dissipation, Ptot: 500 mW.

Features

74HC74D features: (1)Wide supply voltage range from 2.0 to 6.0V; (2)Symmetrical output impedance; (3)High noise immunity; (4)Low power dissipation; (5)Balanced propagation delays; (6)ESD protection: HBM EIA/JESD22-A114-A exceeds 2000 V; MM EIA/JESD22-A115-A exceeds 200 V.
