Product Summary
The AT45DB081B-RC is a 2.5-volt or 2.7-volt only, serial interface Flash memory ideally suited for a wide variety of digital voice-, image-, program code- and data-storage applications. Its 8,650,752 bits of memory are organized as 4096 pages of 264 bytes each. In addition to the main memory, the AT45DB081B-RC also contains two SRAM data buffers of 264 bytes each. The buffers allow receiving of data while a page in the main memory is being reprogrammed, as well as reading or writing a continuous data stream.
Parametrics
AT45DB081B-RC asbolute maximum ratings: (1)Temperature under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC +0.6V.
Features
AT45DB081B-RC features: (1)Single 2.5V - 3.6V or 2.7V - 3.6V Supply; (2)Serial Peripheral Interface (SPI) Compatible; (3)Page Program Operation, Single Cycle Reprogram (Erase and Program); 4096 Pages (264 Bytes/Page) Main Memory; (4)Supports Page and Block Erase Operations; (5)Two 264-byte SRAM Data Buffers ?Allows Receiving of Data while Reprogramming of Nonvolatile Memory; (6)Continuous Read Capability through Entire Array, Ideal for Code Shadowing Applications; (7)Low Power Dissipation, 4 mA Active Read Current Typical; 2 μA CMOS Standby Current Typical; (8)20 MHz Max Clock Frequency; (9)Hardware Data Protection Feature; (10)100% Compatible to AT45DB081 and AT45DB081A; (11)5.0V-tolerant Inputs: SI, SCK, CS, RESET and WP Pins; (12)Commercial and Industrial Temperature Ranges.

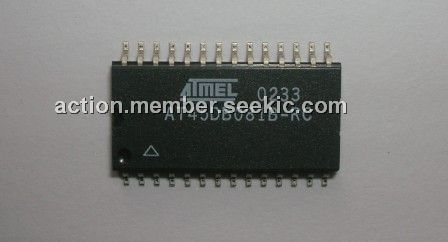

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT45DB081B-RC |
Atmel |
Flash 8M bit |
Data Sheet |
Negotiable |
|
||||
|
AT45DB081B-RC-2.5 |
Atmel |
Flash DATAFLASH 2M SERIAL 2.7V 2.5V COM TEMP |
Data Sheet |
Negotiable |
|
||||
