DP8573AN

DP8573AN, Real Time Clock (RTC), 24-DIP, 7V, 1mA, National Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~100.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~100.00

PartNumber:: DP8573AN

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Daisy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-03

From Other Seller

Part Number:DP8573AN
US $0.10 - 100.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

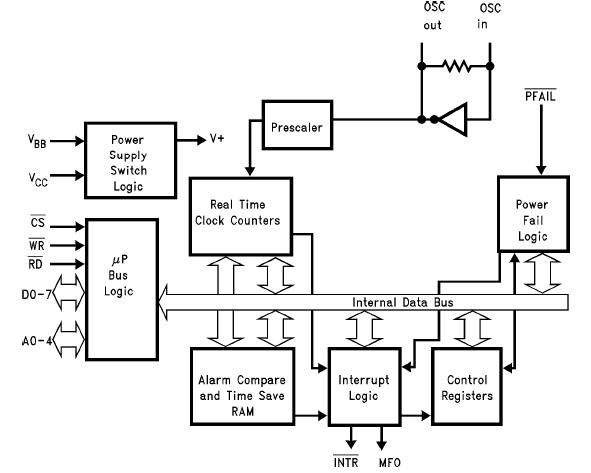

The DP8573AN is a Real Time Clock (RTC). The DP8573AN is intended for using in microprocessor based systems where information is required for multi-tasking, data logging or general time of day/date information. DP8573AN is implemented in low voltage silicon gate microCMOS technology to provide low standby power in battery back-up environments. The architecture of circuit is such that it looks like a contiguous block of memory or I/O ports organized as one block of 32 bytes. This includes the Control Registers, the Clock Counters, the Alarm Compare RAM, and the Time Save RAM.

Parametrics

DP8573AN absolute maximum ratings: (1)Supply Voltage (VCC): -0.5V to +7.0V; (2)DC Input Voltage (VIN): -0.5V to VCC +0.5V; (3)DC Output Voltage (VOUT): -0.5V to VCC +0.5V; (4)Storage Temperature Range: -65℃ to +150℃; (5)Power Dissipation (PD): 500mW; (6)Lead Temperature (Soldering, 10 sec.): 260℃.

Features

DP8573AN features: (1)Full function real time clock/calendar: 12/24 hour mode timekeeping; Day of week counter; Parallel resonant oscillator; (2)Power fail features: Internal power supply switch to external battery; Power Supply Bus glitch protection; Automatic log of time into RAM at power failure; (3)On-chip interrupt structure: Periodic, alarm, and power fail interrupts.
