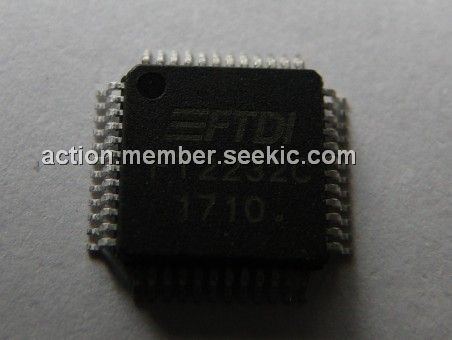

FT2232C

Product Summary

The FT2232C is a 3rd generation of FTDI’s popular USB UART / FIFO I.C. family. This device features two Multi-Purpose UART / FIFO controllers which can be configured individually in several different modes. As well as a UART interface, FIFO interface and Bit-Bang IO modes, the FT2232C offers a variety of additional new modes of operation, including a Multi-Protocol Synchronous Serial Engine interface which is designed specifically for synchronous serial protocols such as JTAG and SPI bus.

Parametrics

FT2232C absolute maximum ratings: (1)Storage Temperature: -65℃ to + 150℃; (2)Floor Life (Out of Bag) at Factory Ambient (30oC/60% Relative Humidity): 192 Hours; (3)Ambient Temperature (Power Applied): 0℃ to +70℃; (4)VCC Supply Voltage: -0.5V to +6.00V; (5)DC Input Voltage - Inputs: -0.5V to VCC + 0.5V; (6)DC Input Voltage - High Impedance Bidirectionals: -0.5V to VCC +0.5V; (7)DC Output Current - Outputs: 24mA; (8)DC Output Current - Low Impedance Bidirectionals: 24mA; (9)Power Dissipation (VCC = 5.25V): 500mW; (10)Electrostatic Discharge Voltage (Human Body Model) (I < 1μA): ±3000V; (11)Latch Up Current (Vi = +/- 10V maximum, for 10 ms): ±200mA.

Features

FT2232C features: (1)Single Chip USB ?Dual Channel Serial / Parallel Ports with a variety of configurations; (2)Entire USB protocol handled on the chip, no USBspecific firmware programming required; (3)FT232BM-style UART interface option with full Handshaking & Modem interface signals; (4)UART Interface supports 7 / 8 bit data, 1 / 2 stop bits, and Odd / Even / Mark / Space / No Parity; (5)Transfer Data Rate 300 to 1 Mega Baud (RS232); (6)Transfer Data Rate 300 to 3 Mega Baud (TTL and RS422 / RS485); (7)Auto Transmit Enable control for RS485 serial applications using TXDEN pin; (8)FT245BM-style FIFO interface option with bidirectional data bus and simple 4 wire handshake interface; (9)Transfer Data Rate up to 1 MegaByte / Second; (10)Enhanced Bit-Bang Mode interface option; (11)New Synchronous Bit-Bang Mode interface option; (12)New CPU-Style FIFO Interface Mode option; (13)New Multi-Protocol Synchronous Serial Engine (MPSSE) interface option; (14)New MCU Host Bus Emulation Mode option; (15)New Fast Opto-Isolated Serial Interface Mode option; (16)Interface mode and USB Description strings configurable in external EEPROM; (17)EEPROM Configurable on board via USB; (18)Support for USB Suspend and Resume conditions via PWREN#, and SI / WU pins; (19)Support for bus powered, self powered, and highpower bus powered USB configurations; (20)Integrated Power-On-Reset circuit, with optional Reset input and Reset Output pins; (21)5V and 3.3V logic IO Interfacing with independent level conversion on each channel; (22)Integrated 3.3V LDO Regulator for USB IO; (23)Integrated 6MHz ?48Mhz clock multiplier PLL; (24)USB Bulk or Isochronous data transfer modes; (25)4.35V to 5.25V single supply operating voltage range; (26)UHCI / OHCI / EHCI host controller compatible; (27)USB 2.0 Full Speed (12 Mbits / Second) compatible; (28)Compact 48-LD LQFP package.

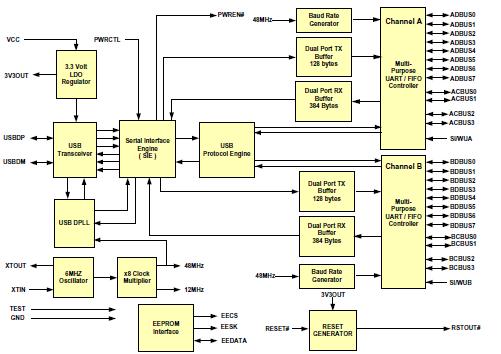

Diagrams
