The HT1632C is a memory mapping LED display controller/driver, which can select a number of ROW and commons. These are 32 ROW & 8 commons and 24 ROW & 16 commons. The HT1632C supports 16-gradation LEDs for each out line using PWM control with software instructions. A serial interface is conveniently provided for the command mode and data mode. The applications of the HT1632C include Industrial control indicator, Digital clock, thermometer, counter, voltmeter, Instrumentation readouts, Other consumer application, LED Displays.
Parametrics
HT1632C absolute maximum ratings: (1)Supply Voltage: VSS -0.3V to VSS +6.0V; (2)Storage Temperature: -50℃ to 125℃; (3)Input Voltage: VSS -0.3V to VDD +0.3V; (4)Operating Temperature: -40℃ to 85℃.
Features
HT1632C features: (1)Operating voltage: 2.4V to 5.5V; (2)Multiple LED display - 32 ROW /8 COM and 24 ROW & 16 COM; (3)Integrated display RAM - select 32 ROW & 8 COM for 64×4 display RAM, or select 24 ROW & 16 COM for 96×4 display RAM; (4)16-level PWM brightness control; (5)Integrated 256kHz RC oscillator; (6)Serial MCU interface - CS, RD, WR, DATA; (7)Data mode & command mode instruction; (8)Cascading function for extended applications; (9)Selectable NMOS open drain output driver and PMOS open drain output driver for commons; (10)52-pin QFP package.

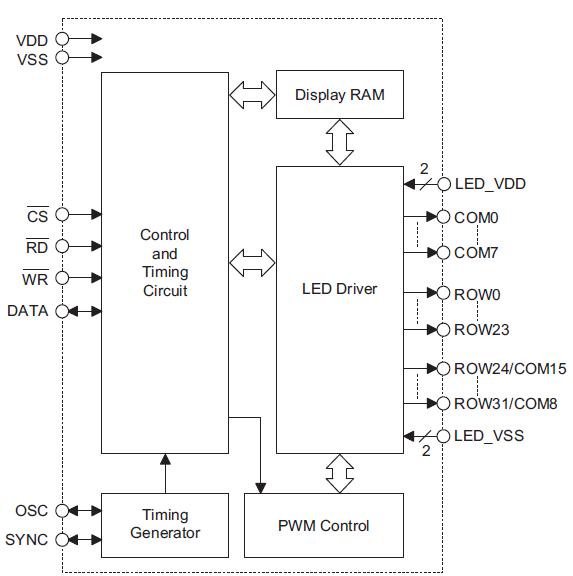

Diagrams
