IP113ALF

IP113ALF, 10 /100Base-Tx/Fx Media Converter, QFP48, 2.5V, 25MHz, IC Plus Corp

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~100.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~100.00

PartNumber:: IP113ALF

Brand:: IC Plus Corp - IC Plus | Pack: QFP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Daisy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-03

From Other Seller

Part Number:IP113ALF
US $0.10 - 100.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

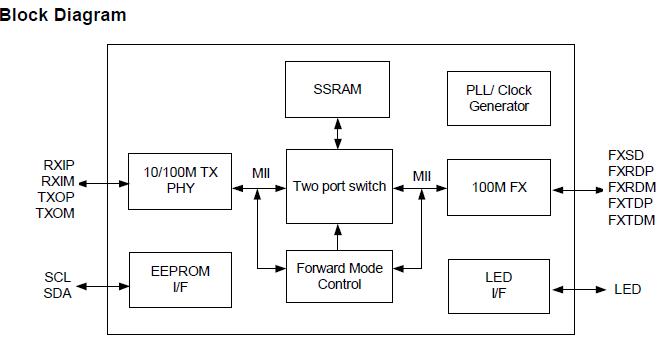

The IP113ALF is a 10/100BASE-TX to 100BASE-FX converter. It consists of a 2-port switch controller, a fast Ethernet transceiver and a PHY for 100BASE-FX. The transceivers in the IP113ALF are designed in DSP approach with advance 0.25-um technology; this results in high noise immunity and robust performance. The IP113ALF not only supports store and forward mode, it also supports modified cut through mode and pure converter mode for low latency data forwarding.The IP113ALF can transmit packet(s) up to 1600 bytes to meet requirement of extra long packets.

Parametrics

IP113ALF absolute maximum ratings: (1)Supply Voltage: -0.3V to Vcc +0.3V; (2)Input Voltage: -0.3V to Vcc +0.3V; (3)Output Voltage: -0.3V to Vcc +0.3V; (4)Storage Temperature: -55℃ to 125℃; (5)Ambient Operating Temperature (Ta): 0℃ to 70℃.

Features

IP113ALF features: (1)A 10/100BASE-TX/ 100BASE-FX converter; (2)Built in a 10/100BASE-TX transceiver; (3)Built in a PHY for 100BASE-FX; (4)Built in a 2-port switch; (5)Built in 128Kb RAM for data buffer; (6)Supports auto MDI-MDIX function; (7)Supports link fault pass through function; (8)Supports far end fault function; (9)LED display for link/activity, full/half, 10/100; (10)Built in a watchdog timer to monitor internal switch error; (11)Supports EEPROM Configuration; (12)0.25u CMOS technology; (13)Single 2.5V power supply; (14)48-pin LQFP package; (15)Support Lead Free package (Please refer to the Order Information).
