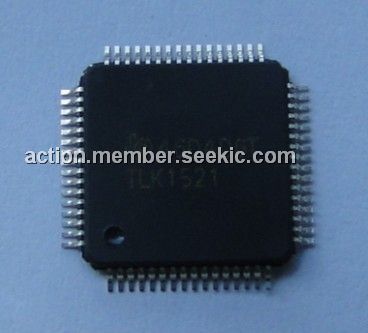

Product Summary

The TLK1521IPAP is a multi-gigabit transceiver, intended for use in high-speed bidirectional point-to-point data transmission systems. The TLK1521IPAP supports an effective serial interface speed of 500 Mbps to 1.3 Gbps, providing up to 1.17 Gbps of data bandwidth.

Parametrics

TLK1521IPAP absolute maximum ratings: (1)Supply voltage, VDD: -0.3V to 3V; (2)Voltage range at TXD, ENABLE, GTX_CLK, LOOPEN, SYNC, PREEMPH: -0.3V to 4V; (3)Voltage range at any other terminal except above: -0.3V to VCC+0.3V; (4)Storage temperature, Tstg: -65℃ to 150℃; (5)Electrostatic discharge, HBM: 2 kV, CDM: 1.5 kV; (6)Characterized free-air operating temperature range: -40℃ to 85℃; (7)Lead Temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.

Features

TLK1521IPAP features: (1)Hot Plug Protection; (2)0.5 to 1.3 Gigabits Per Second (Gbps) Serializer/Deserializer; (3)High-Performance 64-Pin HTQFP Thermally Enhanced Package (Power PAD); (4)2.5-V Power Supply for Low Power Operation; (5)Selectable Signal Preemphasis for Serial Output; (6)Interfaces to Backplane, Copper Cables, or Optical Converters; (7)Lock Indication and Sync Mode for Fast Initialization; (8)18-Bit Parallel Busses for Flexible Interface Applications; (9)On-chip PLL Provides Clock Synthesis From Low-Speed Reference; (10)Receiver Differential Input Thresholds 200 mV Min; (11)Rated for Industrial Temperature Range; (12)Typical Power: 288 mW at 1.3 Gbps; (13)Ideal for High-Speed Backplane Interconnect and Point-to-Point Data Link; (14)Passive Receive Equalizer.

Diagrams

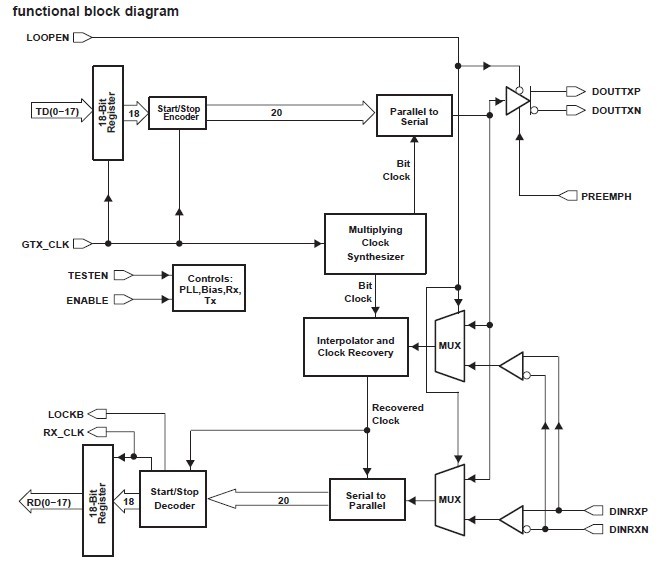

TLK1521IPAP block diagram
