Product Summary

The C8051F340-GQR is a Full Speed USB Flash MCU fully integrated mixed-signal System-on-a-Chip MCUs. With on-chip Power-On Reset, VDD monitor, Voltage Regulator, Watchdog Timer, and clock oscillator, the C8051F340-GQR is truly stand-alone System-on-a-Chip solutions. The Flash memory can be reprogrammed in-circuit, providing non-volatile data storage, and also allowing field upgrades of the 8051 firmware. User software has complete control of all peripherals, and may individually shut down any or all peripherals for power savings.

Parametrics

C8051F340-GQR absolute maximum ratings: (1)Ambient temperature under bias: -55 to 125℃; (2)Storage Temperature: -65 to 150℃; (3)Voltage on any Port I/O Pin or /RST with respect to GND: -0.3 to 5.8 V; (4)Voltage on VDD with respect to GND: -0.3 to 4.2 V; (5)Maximum Total current through VDD and GND: 500 mA; (6)Maximum output current sunk by /RST or any Port pin: 100 mA.

Features

C8051F340-GQR features: (1)High-speed pipelined 8051-compatible microcontroller core (up to 48 MIPS); (2)In-system, full-speed, non-intrusive debug interface (on-chip); (3)Hniversal Serial Bus (USB) Function Controller with eight flexible endpoint pipes, integrated transceiver, and 1 kB FIFO RAM; (4)Supply Voltage Regulator; (5)True 10-bit 200 ksps differential / single-ended ADC with analog multiplexer; (6)On-chip Voltage Reference and Temperature Sensor; (7)On-chip Voltage Comparators; (8)Precision internal calibrated 12 MHz internal oscillator and 4x clock multiplier; (9)Internal low-frequency oscillator for additional power savings; (10)Up to 64 kB of on-chip Flash memory; (11)Up to 4352 Bytes of on-chip RAM (256 + 4 kB); (12)External Memory Interface (EMIF) available on 48-pin versions.; (13)SMBus/I2C, up to 2 UARTs, and Enhanced SPI serial interfaces implemented in hardware; (14)Four general-purpose 16-bit timers; (15)Programmable Counter/Timer Array (PCA) with five capture/compare modules and Watchdog Timer function; (16)On-chip Power-On Reset, VDD Monitor, and Missing Clock Detector; (17)Up to 40 Port I/O (5 V tolerant).

Diagrams

C8051F340-GQR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

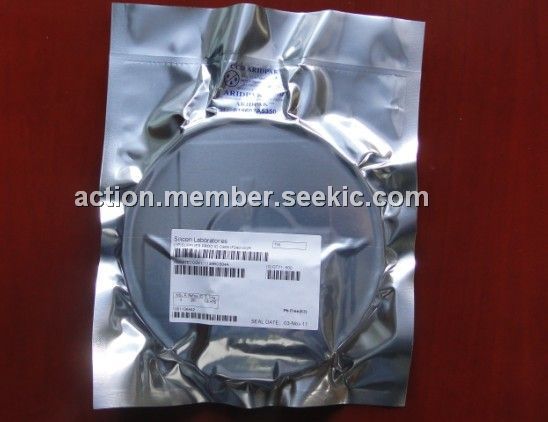

C8051F340-GQR
C8051F340-GQR

Silicon Labs

8-bit Microcontrollers (MCU) 48 MIPS 64KB 10ADC

Data Sheet

0-500: $4.06
500-1000: $3.94
