Product Summary
The DAC703BH is a monolithic 16-bit digital-to-analog converter that includes a precision buried-zener voltage reference and a low-noise, fastsettling output operational amplifier (voltage output models), all on one small monolithic chip. The DAC703BH is a combination of current-switch design techniques accomplishes not only 15-bit monotonicity over the entire specified temperature range, but also a maximum end-point linearity error of ±0.0015% of full-scale range. Total full-scale gain drift is limited to ±10ppm/℃ maximum (LH and CH grades).
Parametrics
DAC703BH absolute maximum ratings: (1)+VCC to common: 0V to +18V; (2)–VCC to common: 0V to -18V; (3)VDD to common: 0V to +18V; (4)Digital data inputs to common: -1V to +18V; (5)Reference out to common: indefinite short to common; (6)External Voltage Applied to D/A Output: -5V to +5V; (7)VOUT: indefinite short to common; (8)Power dissipation: 1W; (9)Storage temperature: -60℃ to +150℃; (10)Lead temperature (soldering, 10s): 300℃.
Features
DAC703BH features: (1)VOUT and IOUT models; (2)High accuracy:linearity error ±0.0015% of FSR max; differential Linearity error ±0.003% of FSR max; (3)Monotonic (at 15 bits) over full specification temperature range; (4)Pin-compatible with DAC70, DAC71, DAC72; (5)Dual-in-line plastic and hermetic ceramic and soic.

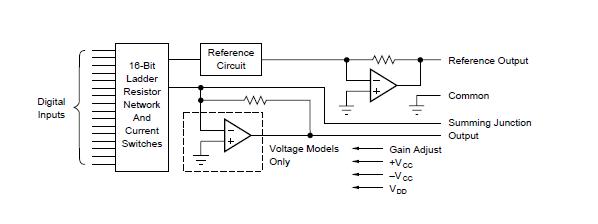

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
DAC703BH |
Texas Instruments |
IC 16-BIT VOUT BIPOLAR D/A 24-DI |
Data Sheet |
Negotiable |
|
|||||
DAC703BH-BI |
Texas Instruments |
IC 16-BIT VOUT BIPOLR D/A 24CDIP |
Data Sheet |
Negotiable |
|
