Product Summary
The NJM324 is a single-supply quad operational amplifier. It consists of four independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages.
Parametrics
NJM324 absolute maximum ratings: (1)supply voltage: 32V; (2)differential input voltage: 32V; (3)input voltage: -0.3V to +32V; (4)power dissipation: 300mW; (5)operating temperature range: -40℃ to +85℃; (6)storage temperature range: -40℃ to +125℃.
Features
NJM324 features: (1)single supply operation; (2)operating voltage:+3V to +32V; (3)low operating current:0.7mA typ.; (4)package outline: SSOP14; (5)bipolar technology.

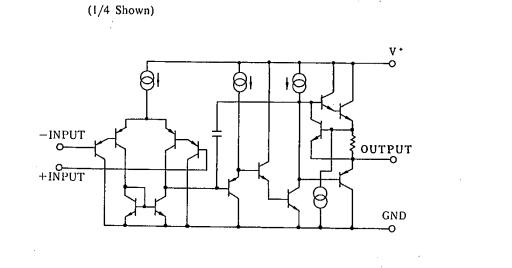

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NJM324 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
NJM324D |
NJR |
Operational Amplifiers - Op Amps Quad Single Supply |
Data Sheet |
|
|
||||||||||||
|
NJM324E |
NJR |
Operational Amplifiers - Op Amps Quad Single Supply |
Data Sheet |
Negotiable |
|
||||||||||||
|
NJM324M-T1 |
NJR |
Operational Amplifiers - Op Amps Quad Single Supply |
Data Sheet |
Negotiable |
|
||||||||||||
|
NJM324M-T2 |
NJR |
Operational Amplifiers - Op Amps Quad Single Supply |
Data Sheet |
Negotiable |
|
||||||||||||
|
NJM324M-TE1 |
NJR |
Operational Amplifiers - Op Amps Quad Single Supply |
Data Sheet |
|
|
||||||||||||
|
NJM324V |
NJR |
Operational Amplifiers - Op Amps Quad Single Supply |
Data Sheet |
Negotiable |
|
||||||||||||
|
NJM324V-TE2 |
NJR |
Operational Amplifiers - Op Amps Quad Single Supply |
Data Sheet |
|
|
||||||||||||
