Product Summary
The SGM9123XS is a video buffer which integrates triple 6dB Gain rail-to-rail output driver and triple 3rd output reconstruction filter, it has 8MHz -3dB bandwidth and 44V/μs slew rate. The SGM9123XS provides improved image quality compared with passive LC filters and discrete drivers solution. Operating from single supplies ranging from +2.5V to +5.5V and sinking an ultra-low 7.4mA quiescent current, the device is ideally suited for battery powered applications. The applications of the SGM9123XS include Video Amplifiers, Cable and Satellite Set Top Boxes, Communications Devices, Video on Demand, Portable and Handheld Products, Personal Video Recorders, DVD Players, SDTVs.
Parametrics
SGM9123XS absolute maximum ratings: (1)Supply Voltage, V+ to V-: 6.5 V; (2)Input Voltage: GND -0.3 V to (+VS) +0.3V; (3)Storage Temperature Range: -65℃ to +150℃; (4)Junction Temperature: 160℃; (5)Operating Temperature Range: -40℃ to +125℃; (6)Power Dissipation, PD @ TA = 25℃, SC70-6: 0.8W; Package Thermal Resistance SC70-6, θJA: 125℃/W; (7)Lead Temperature Range (Soldering 10 sec): 260℃; (8)ESD Susceptibility, HBM: 8000V; MM: 400V.
Features
SGM9123XS features: (1)Triple 3rd order 8MHz (SD) Filters; (2)Transparent Input Clamping; (3)6dB Output Driver Gain and Drive Dual Video Load; (4)Rail-to-Rail Output; (5)Input Voltage Range Includes Ground; (6)AC or DC Coupled Inputs; (7)AC or DC Coupled Outputs; (8)Operates from 2.5V to 5.5V Single Power Supply; (9)Low Power (2.5mA/channel), 7.4mA Total Supply Current; (10)Lead (Pb) Free SO-8 Package.

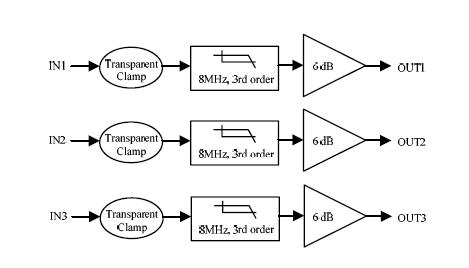

Diagrams
 |
