Product Summary
The STLC5046 is a monolithic programmable 4 channel codec and filter. It operates with a single +3.3V supply. The analog interface is based on a receive output buffer driving the SLIC RX input and on an amplifier input stage.
Parametrics
Absolute maximum ratings: (1)VCC to VEE: -0.5 to 4.6 V; (2)VDD to VSS: -0.5 to 4.6 V; (3)Digital Input Input Pin Voltage: -0.5 to 5.5 V; (4)Output Pin Current: ±1 mA; (5)Storage Temperature Range: -65 to +150 ℃; (6)Lead Temperature (soldering, 10s): 300 ℃; (7)Analog Pin Input Voltage: -0.5 to 4.6 V.
Features
Features: (1)programmable monolithic 4 channel codec/filter; (2)single +3.3V supply; (3)pin strap / mcucontrol mode; (4)A/m law programmable; (5)linear coding (16 bits) option; (6)PCM highway format automatically; (7)detected: 1.536 or 1.544MHz; 2.048, 4.096, 8192 MHz; (8)TX gain programming: 16dB range; <0.1dB step.

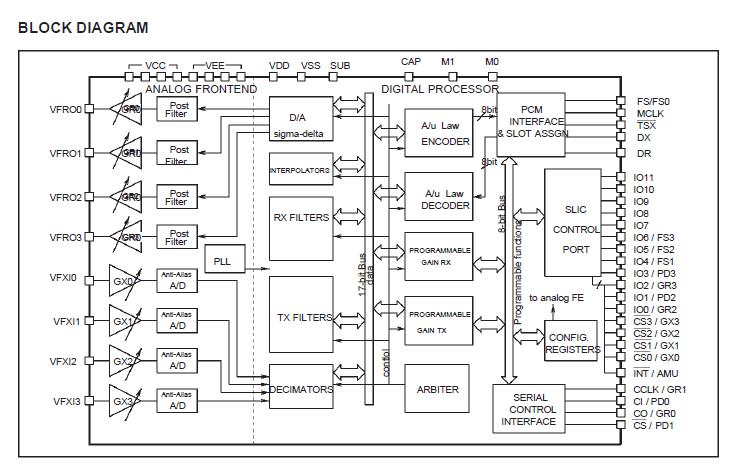

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 STLC5046 |
STMicroelectronics |
Telecom ICs Prog 4-Ch CODEC/Filt |
Data Sheet |
Negotiable |
|
||||
