Product Summary

The TS5A3159DBVR is a single-pole double-throw (SPDT) analog switch that is designed to operate from 1.65 V to 5.5 V. The device offers a low ON-state resistance and an excellent ON-resistance, matching with the break-before-make feature to prevent signal distortion during the transferring of a signal from one channel to another.

Parametrics

Absolute maximum ratings: (1)Supply voltage range: -0.5 V min and 6.5 V max; (2)Analog voltage range: -0.5 V min and V+ + 0.5 V max; (3)Analog port diode current: ±50 mA at VNO, VCOM < 0 or VNO, VCOM > V+; (4)ON.state switch current: ±200 mA at VNO, VCOM = 0 to V+; (5)ON.state peak switch current(: ±400 mA; (6)Digital input voltage range: -0.5 to 6.5 V; (7)Digital input clamp current: -50 mA at VIN < 0 ; (8)Continuous current through V+ or GND: ±100 mA; (9)Package thermal impedance: 165 ℃; (10)Storage temperature range: -65 to 150 ℃.

Features

Features: (1)Specified Break-Before-Make Switching; (2)Low ON-State Resistance (1Ω); (3)Control Inputs Are 5-V Tolerant; (4)Low Charge Injection; (5)Excellent ON-Resistance Matching; (6)Low Total Harmonic Distortion; (7)1.65-V to 5.5-V Single-Supply Operation; (8)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II.

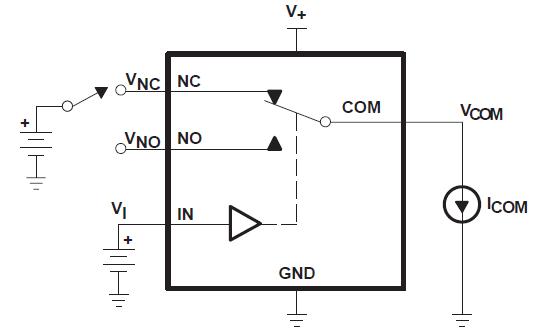

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TS5A3159DBVR
TS5A3159DBVR

Texas Instruments

Analog Switch ICs 1-Ohm SPDT Analog Switch

Data Sheet

0-1: $0.50
1-25: $0.40
25-100: $0.35
100-250: $0.32
TS5A3159DBVRE4
TS5A3159DBVRE4

Texas Instruments

Analog Switch ICs 1-Ohm SPDT Analog Switch

Data Sheet

0-1: $0.51
1-25: $0.40
25-100: $0.32
100-250: $0.26
TS5A3159DBVRG4
TS5A3159DBVRG4

Texas Instruments

Analog Switch ICs 1-Ohm SPDT Analog Switch

Data Sheet

0-2350: $0.20
2350-3000: $0.19
3000-6000: $0.18
