Product Summary

The AM29F010-120JC is a 1 Mbit, 5.0 Volt-only Flash memory organized as 131,072 bytes. It is is designed to be programmed in-system with the standard system 5.0 Volt VCC supply.

Parametrics

Absolute maximum ratings: (1)Storage Temperature Plastic Packages: –65℃ to +125℃; (2)Ambient Temperature; (3)with Power Applied: –55℃ to +125℃; (4)Voltage with Respect to Ground: VCC: –2.0 V to +7.0 V; A9: –2.0 V to +12.5 V; All other pins: –2.0 V to +7.0 V; (5)Output Short Circuit Current: 200 mA.

Features

Features: (1)single power supply operation; (2)high performance; (3)low power consumption; (4)flexible sector architecture; (5)sector protection; (6)embedded algorithms; (7)minimum 100,000 program/erase cycles; (8)compatible with JEDEC standards.

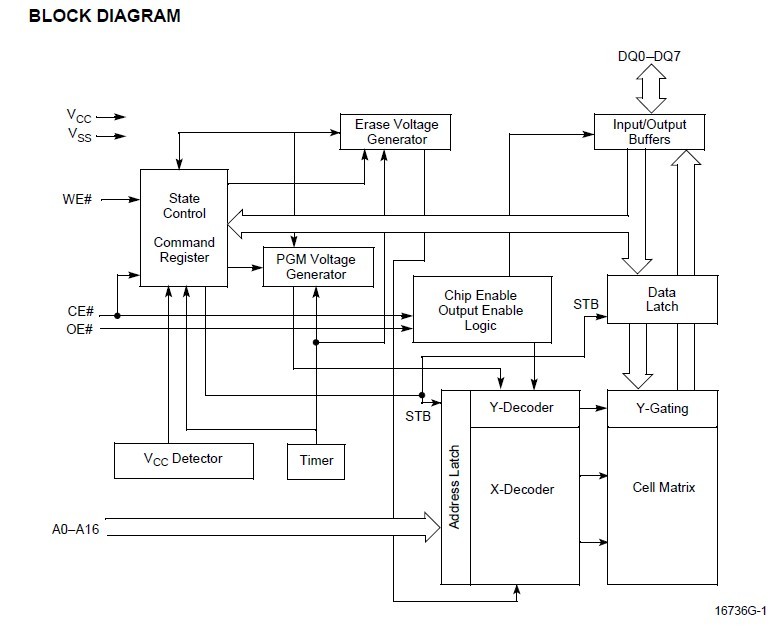

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

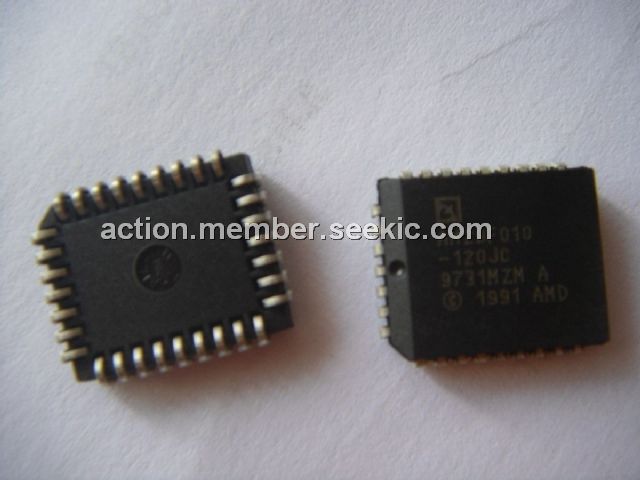

AM29F010-120JC
AM29F010-120JC

AMD

IC FLASH MEM 1MEG 120NS 32PLCC

Data Sheet

Negotiable
