Product Summary

The VJ1812Y104KXEAT is a Surface Mount Multilayer Ceramic Chip Capacitor Solution for Boardflex Sensitive Applications.

Parametrics

Absolute maximum ratings: (1)Operating Temperature: - 55 ℃ to + 125 ℃; (2)Capacitance Range: 100 pF to 1.8 μF; (3)Voltage Rating: 16 Vdc to 3000 Vdc; (4)Temperature Coefficient of Capacitance (TCC): X7R: ±15 % from - 55 ℃ to + 125 ℃, with 0 Vdc applied; (5)Dissipation Factor: 6.3 V, 10 V ratings: 5 % max. at 1.0 Vrms and 1 kHz, 16 V, 25 V ratings: 3.5 % max. at 1.0 Vrms and 1 kHz, 50 V ratings: 2.5 % max. at 1.0 Vrms and 1 kHz; (6)Aging Rate: 1 % maximum per decade.

Features

Features: (1)Surface mountable, precious metal technology, wet build process; (2)OMD-Cap (Open Mode Design) reduce the risk of short or low IR because of board flex cracks; (3)Efficient low-power consumption, ripple current capaple to 1.2 Arms at 100 kHz; (4)High Voltage breakdown compared to standard design; (5)Available with 100 % voltage condition, process code "5H"; (6)Excellent reliability and thermal shock performance; (7)Available with polymer termination for increase resistance to board flex cracking; (8)Protective surface coating of high voltage capacitors maybe required to prevent surface arcing.

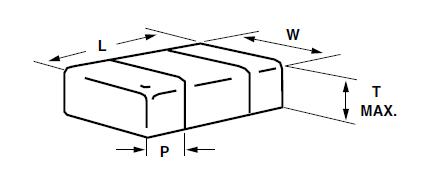

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
VJ1812Y104KXEAT
VJ1812Y104KXEAT

Vishay/Vitramon

Multilayer Ceramic Capacitors (MLCC) - SMD/SMT .1uF 500volts X7R 10%

Data Sheet

0-1: $0.54
1-50: $0.42
50-100: $0.35
100-500: $0.28
500-1000: $0.27
VJ1812Y104KXEAT4X
VJ1812Y104KXEAT4X

Vishay/Vitramon

Multilayer Ceramic Capacitors (MLCC) - SMD/SMT .1uF 500volts 10%

Data Sheet

0-1: $0.83
1-50: $0.77
50-100: $0.75
100-500: $0.67
500-1000: $0.60
VJ1812Y104KXEAT5Z
VJ1812Y104KXEAT5Z

Vishay/Vitramon

Multilayer Ceramic Capacitors (MLCC) - SMD/SMT 1812 .1uF 500volts X7R 10%

Data Sheet

0-1: $1.27
1-50: $1.04
50-100: $0.83
100-500: $0.68
500-1000: $0.43
