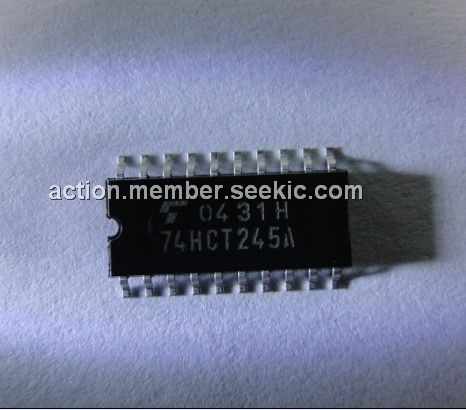

Product Summary
The 74HCT245A is an Octal 3-State Noninverting Bus Transceiver with LSTTL Compatible Inputs. This device may be used as a level converter for interfacing TTL or NMOSoutputs to High Speed CMOS inputs. The 74HCT245A is used for 2-way asynchronous communication between data buses. The device has an active-low Output Enable pin, which is used to place the I/O ports into high-impedance states. The Direction control determines whether data flows from A to B or from B to A.
Parametrics
74HCT245A absolute maximum ratings: (1)DC Supply Voltage (Referenced to GND), VCC -0.5 to +7.0V; (2)DC Input Voltage (Referenced to GND), Vin: -0.5 to Vcc +0.5V; (3)DC Output Voltage (Referenced to GND), Vout: -0.5 to Vcc +0.5V; (4)DC Input Current, per Pin, Iin: ±20mA; (5)DC Output Current, per Pin, Iout: ±35mA; (6)DC Supply Current, Vqq and GND Pins, ICC: ±75mA; (7)Power Dissipation in Still Air, PDIP, PD: 750mW; SOIC Package, PD: 500mW; TSSOP Package, PD: 450mW; (8)Storage Temperature, Tstg: -65 to +150℃; (9)Lead Temperature, 1 mm from Case for 10 Secs (PDIP, SOIC, SSOP or TSSOP Package), Tl: 260℃.
Features
74HCT245A features: (1)Output Drive Capability: 15 LSTTL Loads; (2)TTL/NMOS Compatible Input Levels; (3)Outputs Directly Interface to CMOS, NMOS and TTL; (4)Operating Voltage Range: 4.5 V to 5.5 V; (5)Low Input Current: 1.0 μA; (6)In Compliance with the Requirements Defined by JEDEC Standard; (7)No. 7A; (8)Chip Complexity: 304 FETs or 76 Equivalent Gates; (9)Pb-Free Packages are Available.

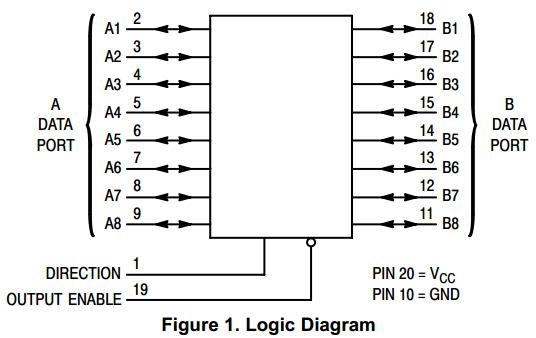

Diagrams
 |
