Product Summary

The ADL5350ACPZ-R7 is a high linearity, up-and-down converting mixer capable of operating over a broad input frequency range. It is well suited for demanding cellular base-station mixer designs that require high sensitivity and efficient blocker immunity. Based on a GaAs pHEMT single-ended mixer architecture, the ADL5350ACPZ-R7 provides excellent input linearity and low noise figure without the need for a high power level, local oscillator (LO) drive. The applications of the ADL5350ACPZ-R7 include Cellular base station, Point-to-point radio links, RF instrumentation.

Parametrics

ADL5350ACPZ-R7 absolute maximum ratings: (1)Supply Voltage, VS: 6.0 V; (2)RF Input Level: 20 dBm; (3)LO Input Level: 20 dBm; (4)Internal Power Dissipation: 324 mW; (5)θJA: 154.3℃/W; (6)Maximum Junction Temperature 135℃; (7)Operating Temperature Range: -40℃ to +85℃; (8)Storage Temperature Range: -65℃ to +150℃.

Features

ADL5350ACPZ-R7 features: (1)Broadband RF, IF, and LO ports; (2)Conversion loss: 6 dB; (3)Noise figure: 6 dB; (4)High input IP3: 26 dBm; (5)High input P1dB: 17 dBm; (6)Low LO drive level; (7)Single-ended design: no need for baluns; (8)Single-supply operation: 3 V @ 10 mA; (9)Miniature 8-lead 3 mm x 2 mm LFCSP package; (10)RoHS compliant.

Diagrams

<IMG border=0 alt="ADL5350ACPZ-R7 block diagram" src="http://www.seekic.com/uploadfile/ic-mfg/2012102943541655.jpg">

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

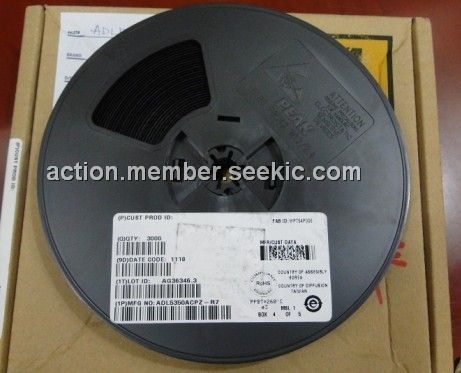

ADL5350ACPZ-R7
ADL5350ACPZ-R7

IC MIXER-Y LF TO 4GHZ 8LFCSP
Data Sheet
0-1: $3.71
1-10: $3.33
10-25: $2.99
25-100: $2.72
100-250: $2.47
250-500: $2.21
500-1000: $1.86
