Product Summary

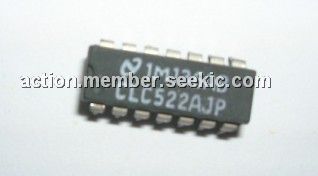

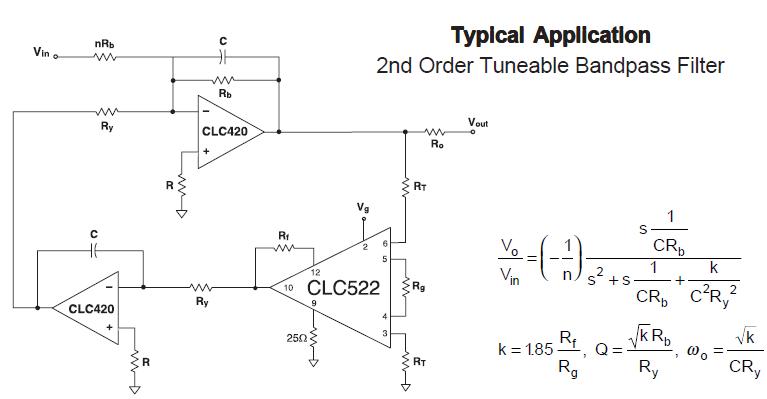

The CLC522AJP is a variable gain amplifier (VGA). The CLC522AJP is a dc-coupled, two quadrant multiplier with differential voltage inputs and a single-ended voltage output. Two input buffers and an output operational amplifer are integrated with the multiplier core to make the device a complete VGA system that does not require external buffering. The applications of the CLC522AJP include Variable attenuators, Pulse amplitude equalizers, HF modulators, Automatic gain control & leveling loops, Video production switching, Differential line receivers, Voltage controlled filters.
Parametrics
CLC522AJP absolute maximum ratings: (1)supply voltage: ±7V; (2)short circuit current: 80mA; (3)common-mode input voltage: ±Vcc; (4)maximum junction temperature: +150℃; (5)storage temperature: -65℃ to+150℃; (6)lead temperature (soldering 10 sec): +300℃.
Features
CLC522AJP features: (1)330MHz signal bandwidth: Avmax = 2; (2)165MHz gain-control bandwidth; (3)0.3° to 60MHz linear phase deviation; (4)0.04% (-68dB) signal-channel non-linearity; (5)>40dB gain-adjustment range; (6)Differential or single-end voltage inputs; (7)Single-ended voltage output.
