Product Summary

The DCP010505BP is a 1W, unregulated, isolated DC/DC converter. Requiring a minimum of external components and including on-chip device protection, the DCP010505BP provides extra features such as output disable and synchronization of switching frequencies. The applications of the DCP010505BP include Point-of-Use Power Conversion, Ground Loop Elimination, Data Acquisition, Industrial Control and Instrumentation, Test Equipment.

Parametrics

DCP010505BP absolute maximum ratings: (1)Input voltage: 7 V at 5V models, 18 V at 15V models, 29 V at 24V models; (2)Storage temperature: -40 to +125 ℃; (3)Lead temperature (soldering, 10s): +270 ℃.

Features

DCP010505BP features: (1)Up To 85% Efficiency; (2)Thermal Protection; (3)Device-to-Device Synchronization; (4)Short-Circuit Protection; (5)EN55022 Class B EMC Performance; (6)UL1950 Recognized Component; (7)JEDEC DIP-14 and SOP-14 Packages.

Diagrams

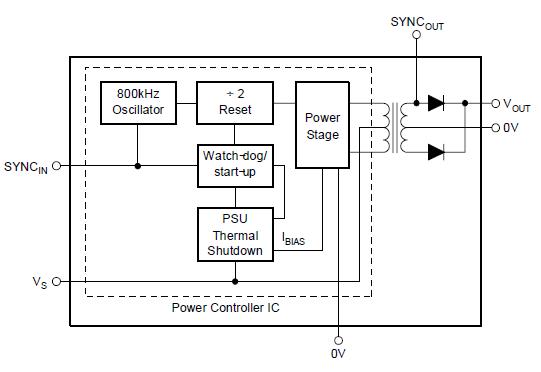

DCP010505BP block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

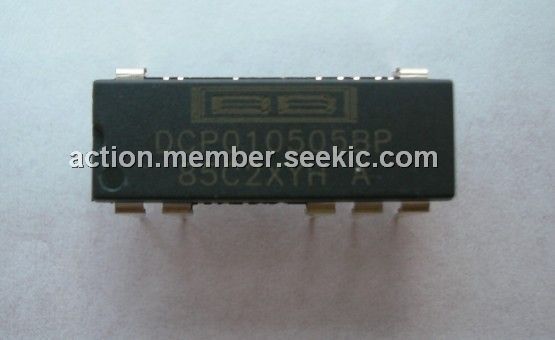

DCP010505BP
DCP010505BP

Texas Instruments

DC/DC Converters Mini 1W Iso Unreg DC/DC Converter

Data Sheet

0-1: $7.22
1-10: $6.49
10-25: $5.78
25-50: $5.45
DCP010505BP-U
DCP010505BP-U

Texas Instruments

DC/DC Converters Mini 1W Iso Unreg DC/DC Converter

Data Sheet

0-1: $7.22
1-10: $6.49
10-25: $5.78
25-50: $5.45
DCP010505BP-UE4
DCP010505BP-UE4

Texas Instruments

DC/DC Converters Mini 1W Iso Unreg DC/DC Converter

Data Sheet

0-1: $7.22
1-10: $6.49
10-25: $5.78
25-50: $5.45
DCP010505BP-U/700
DCP010505BP-U/700

Texas Instruments

DC/DC Converters Mini 1W Iso Unreg DC/DC Converter

Data Sheet

0-1: $7.22
1-10: $6.49
10-25: $5.78
25-50: $5.45
DCP010505BP-U/7E4
DCP010505BP-U/7E4

Texas Instruments

DC/DC Converters Mini 1W Iso Unreg DC/DC Converter

Data Sheet

0-540: $3.75
540-700: $3.75
700-750: $3.68
750-1000: $3.61
