Product Summary

The LM1117S-ADJ is a low power positive-voltage regulator designed to meet 1A output current and comply with SCSI-II specifications with a fixed output voltage of 2.85V. It is an excellent choice for use in battery-powered applications, as active terminators for the SCSI bus, and portable computers.

Parametrics

Absolute maximum ratings: (1)DC input voltage, VIN: 15V max; (2)lead temperature (soldering, 5 seconds), TSOL: 260℃ max; (3)storage temperature range, TSTG: -65 to 150℃; (4)operating junction temperature range, TOPR: -40 to 125℃.

Features

Features: (1)Output Current up to 1 A; (2)Low Dropout Voltage ( 1.2V at 1A Output Current ); (3)Three Terminal Adjustable(ADJ) or Fixed 1.2V,1.5V, 1.8V, 2.5V, 2.85V, 3.3V, 5.0V; (4)Line Regulaion typically at 0.1% max; (5)Load Regulaion typically at 0.2% max; (6)Internal Current and Terminal Protection; (7)Maximum Input Voltage - 15V; (8)Surface Mount Package SOT-223, TO-252, SOT-89; (9)100% Thermal Limit Burn-In.

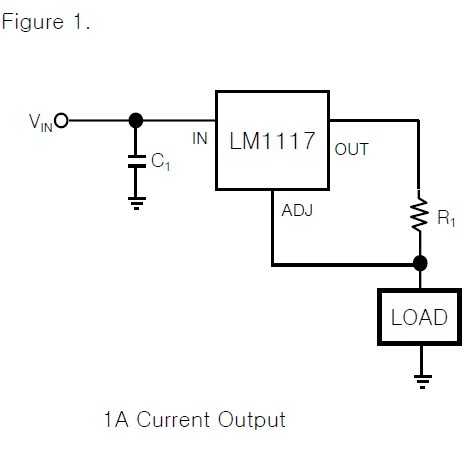

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LM1117S-ADJ
LM1117S-ADJ

National Semiconductor (TI)

Low Dropout (LDO) Regulators

Data Sheet

0-675: $0.53
675-1035: $0.49
1035-2520: $0.47
2520-5040: $0.45
