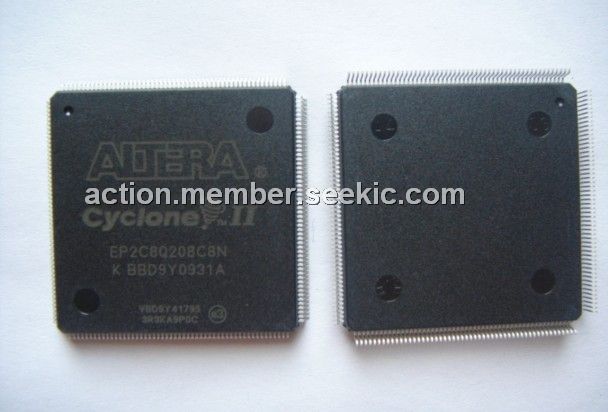

EP2C8Q208C8

Product Summary

The EP2C8Q208C8 is an FPGA. It is manufactured on 300-mm wafers using TSMC’s 90-nm low-k dielectric process to ensure rapid availability and low cost. By minimizing silicon area, the EP2C8Q208C8 can support complex digital systems on a single chip at a cost that rivals that of ASICs. The EP2C8Q208C8 supports the Nios II embedded processor which allows you to implement custom-fit embedded processing solutions. It can also expand the peripheral set, memory, I/O, or performance of embedded processors.

Parametrics

EP2C8Q208C8 absolute maximum ratings: (1)Supply voltage: -0.5V to 1.8V; (2)Output supply voltage: -0.5V to 4.6V; (3)PLL supply voltage: -0.5V to 1.8V; (4)DC input voltage: -0.5V to 4.6V; (5)DC output current: -25mA to 40mA; (6)Storage temperature: -65℃ to 150℃; (7)Junction temperature: 125℃.

Features

EP2C8Q208C8 features: (1)133-MHz PCI-X 1.0 specification compatibility; (2)High-speed external memory support, including DDR, DDR2, and SDR SDRAM, and QDRII SRAM supported by drop in Altera IP MegaCore functions for ease of use; (3)Three dedicated registers per I/O element (IOE): one input register, one output register, and one output-enable register; (4)Programmable bus-hold feature; (5)Programmable output drive strength feature; (6)Programmable delays from the pin to the IOE or logic array; (7)I/O bank grouping for unique VCCIO and/or VREF bank settings; (8)MultiVolt I/O standard support for 1.5-, 1.8-, 2.5-, and 3.3- interfaces; (9)Hot-socketing operation support; (10)Tri-state with weak pull-up on I/O pins before and during configuration; (11)Programmable open-drain outputs; (12)Series on-chip termination support; (13)Fast serial configuration allows configuration times less than 100 ms; (14)Decompression feature allows for smaller programming file storage and faster configuration times; (15)Supports multiple configuration modes: active serial, passive serial, and JTAG-based configuration; (16)Supports configuration through low-cost serial configuration devices; (17)Device configuration supports multiple voltages (either 3.3, 2.5, or 1.8 V).

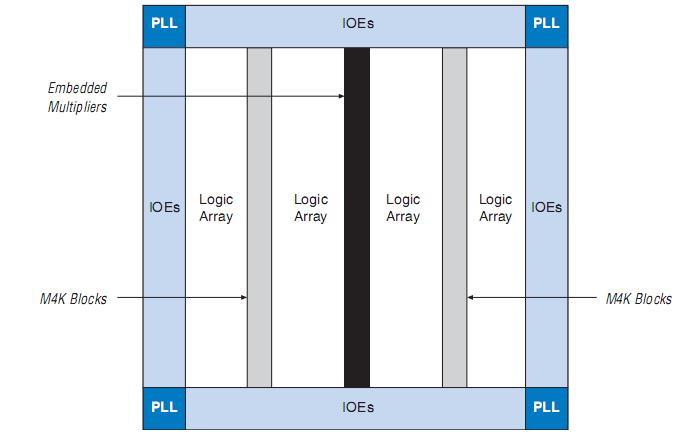

Diagrams
