Product Summary

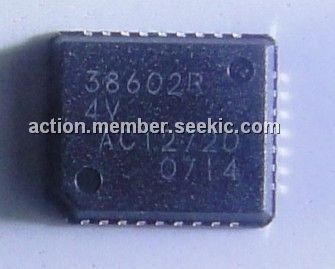

The HD64F38602RFT4V is a 16-Bit Single-Chip Microcomputer.
Parametrics
HD64F38602RFT4V absolute maximum ratings: (1)Power supply voltage, VCC: -0.3 to +4.3 V; (2)Analog power supply voltage, AVCC: -0.3 to +4.3 V ; (3)Input voltage, Other than port B Vin: -0.3 to VCC +0.3 V; Port B AVin: -0.3 to AVCC +0.3 V; (4)Operating temperature, Topr: -20 to +75℃(general specifications); -40 to +85℃ (wide temperature range; (5)specifications); (6)Storage temperature, Tstg: -55 to +125℃.
Features
HD64F38602RFT4V features: (1)High-speed H8/300H central processing unit with an internal 16-bit architecture, Upward-compatible with H8/300 CPU on an object level]; Sixteen 16-bit general registers; 62 basic instructions ; (2)Various peripheral functions, RTC (can be used as a free-running counter); Asynchronous event counter (AEC); Timer B1; Timer W; Watchdog timer; SCI (asynchronous or clock synchronous serial communication interface); SSU (synchronous serial communication unit); I2C bus interface (conforms to the I2C bus interface format that is advocated by Philips Electronics); 10-bit A/D converter; Comparators.
Diagrams
<IMG border=0 alt="HD64F38602RFT4V block diagram" src="http://www.seekic.com/uploadfile/ic-mfg/2012102941612348.jpg">
 |
