Product Summary

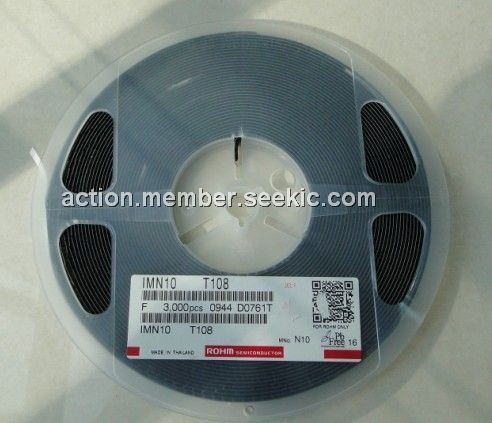

The IMN10-T108 is a Switching diode. The application of the IMN10-T108 includes Ultra high speed switching.

Parametrics

IMN10-T108 absolute maximum ratings: (1)Peak reverse voltage, VRM: 80V; (2)DC reverse voltage, VR: 80V; (3)Peak forward current, IFM: 300mA; (4)Mean rectifying current, IO: 100mA; (5)Surge current (1μs), Isurge: 4A; (6)Power dissipation (TOTAL), Pd: 300mW; (7)Junction temperature, Tj: 150℃; (8)Storage temperature, Tstg: -55 to +150℃.

Features

IMN10-T108 features: (1)A wide variety of configurations are available (UMD5, UMD6, SMD5, SMD6); (2)Multiple diodes in one small surface mount package; (3)Diode characteristics are matched in the package.

Diagrams

IMN10-T108 circuit diagram
