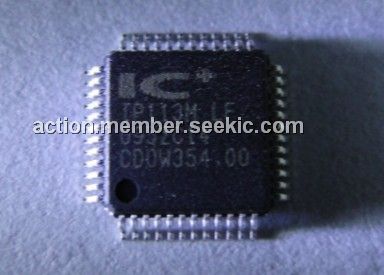

Product Summary

The IP113MLF is a 10/100BASE-TX to 100BASE-FX converter with an SMI port for management. It consists of a 2-port switch controller, a fast Ethernet transceiver and a PHY for 100BASE-FX. The transceivers in the IP113MLF are designed in DSP approach with advance 0.25um technology; this results in high noise immunity and robust performance. The IP113MLF not only supports store and forward mode, it also supports modified cut through mode and pure converter mode for low latency data forwarding. The device can transmit packet(s) up to 1600 bytes to meet requirement of extra long packets. The device supports remote management function. The IP113MLF supports remote access functions and it also supports remote monitor and loop back test function defined in TS-1000 spec.

Parametrics

IP113MLF absolute maximum ratings: (1)Supply Voltage: -0.3V to Vcc+0.3V; (2)Input Voltage: -0.3V to Vcc+0.3V; (3)Output Voltage: -0.3V to Vcc+0.3V; (4)Storage Temperature: -55℃ to 125℃; (5)Ambient Operating Temperature (Ta): 0℃ to 70℃.

Features

IP113MLF features: (1)A 10/100BASE-TX/ 100BASE-FX converter with a SMI port for management; (2)Built in a 10/100BASE-TX transceiver; (3)Built in a PHY for 100BASE-FX; (4)Built in a 2-port switch; (5)Built in 128Kb RAM for data buffer; (6)Supports 3.3v I/O tolerance SMI (MDC, MDIO) and MII registers for management; (7)Supports Statistic Counters; (8)Supports auto MDI-MDIX function; (9)Supports link fault pass through function; (10)Supports far end fault function; (11)LED display for link/activity, full/half, 10/100; (12)Built in a watchdog timer to monitor internal switch error; (13)Supports EEPROM Configuration; (14)0.25u CMOS technology; (15)Single 2.5V power supply; (16)48-pin LQFP package; (17)Support Lead Free package (Please refer to the Order Information).

Diagrams

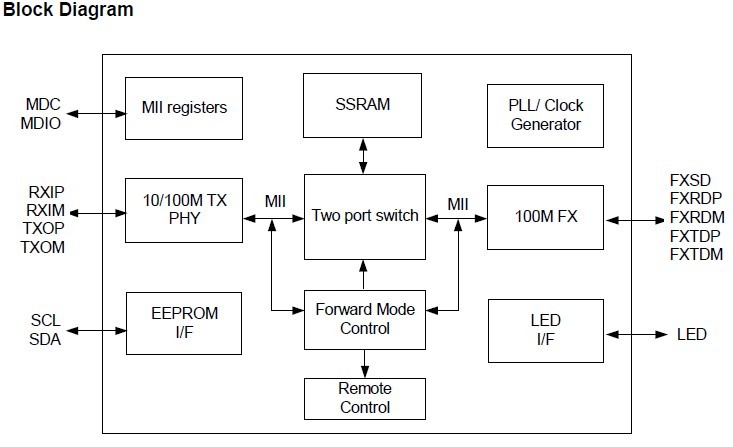

IP113MLF block diagram
