Product Summary
The STM32F103RCT6 is a High-density performance line ARM-based 32-bit MCU with 256 to 512KB Flash, USB, CAN, 11 timers, 3 ADCs, 13 communication interface.
Parametrics
Absolute maximum ratings: (1)External main supply voltage (including VDDA and VDD): -0.3 V min and 4.0 V max; (2)Input voltage onfive volt tolerant pin: VSS-0.3V min and +5.5V max; (3)Input voltage on any other pin: VSS-0.3V min and VDD+0.3V max; (4)Variations between different VDD power pins: 50 mV max; (5)Variations between all the different ground pins: 50 mV max.
Features
Features: (1)Core: ARM 32-bit Cortex.-M3 CPU; (2)Memories; (3)Clock, reset and supply management; (4)Low power; (5)3 × 12-bit, 1 μs A/D converters (up to 21 channels); (6)2 × 12-bit D/A converters; (7)DMA: 12-channel DMA controller; (8)Debug mode; (9)Up to 112 fast I/O ports; (10)Up to 11 timers.

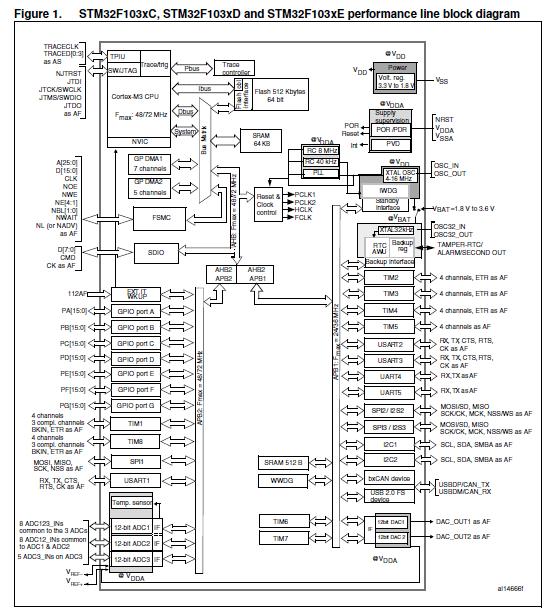

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 STM32F103RCT6 |
STMicroelectronics |
ARM Microcontrollers (MCU) 32BIT Cortex M3 H/D 256 to 512 USB/CAN |
Data Sheet |
|
|
||||||||||||
|
STM32F103RCT6TR |
STMicroelectronics |
ARM Microcontrollers (MCU) 32BIT Cortex M3 M3 72MHz 64pins |
Data Sheet |
|
|
||||||||||||
