Product Summary

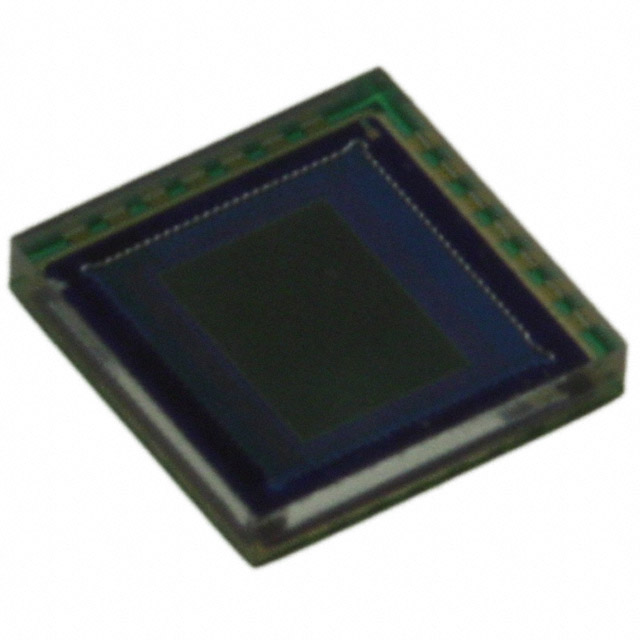

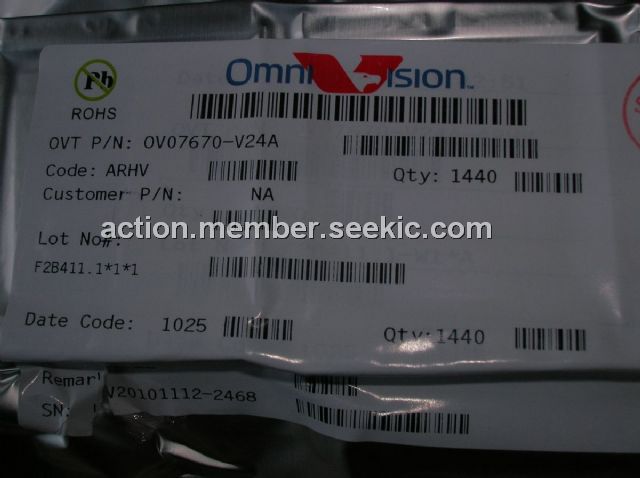

The OV07670-V24A is a 1/6 inch VGA CameraChip for ultra-thin camera modules.

Parametrics

Absolute maximum ratings: (1)active array size: 640 x 480 (VGA); (2)power supply: digital core:1.8VDC±10%, analog: 2.45V to 3.0V, I/O: 1.7V to 3.0V; (3)power requirements: active: 60 mW typical (15fps VGA YUV format), standby: < 20 μA; (4)lens size: 1/6"; (5)chief ray angle: 25°; (6)maximum image transfer rate: 30 fps for VGA; (7)S/N ratio: 46 dB; (8)pixel size: 3.6 μm x 3.6 μm; (9)package dimensions: 3785 μm x 4235 μm.

Features

Features: (1)high sensitivity for low-light product specifications operation; (2)low operating voltage for embedded portable apps; (3)VarioPixel method for subsampling; (4)automatic image control functions including: AEC, AGC, AWB, ABF, and ABLC; (5)image quality controls including color saturation, hue, gamma,; (6)sharpness (edge enhancement), and anti-blooming; (7)ISP includes noise reduction and defect correction; (8)supports LED and flash strobe mode; (9)supports scaling; (10)lens shading correction; (11)flicker (50/60 Hz) auto detection; (12)edge enhancement level auto adjust; (13)de-noise level auto adjust.

Diagrams
