Product Summary

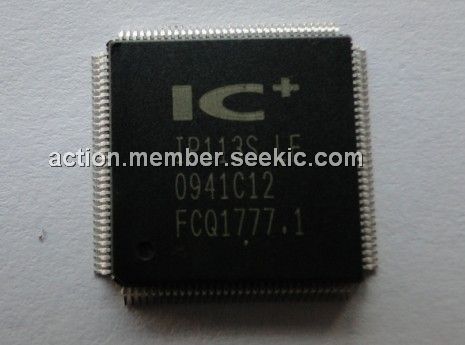

The IP113SLF is a 10/100 Base-TX / 100 Base-FX Converter. The IP113SLF built in a 3-port switch controller, an OAM engine, a fast Ethernet transceiver, a PHY for 100BASE-FX and three MII I/F. Two of these MII can be configured as SMII I/F. The powerful switch engine supports flow control, VLAN, CoS , port mirroring, and trunking, etc. The transceivers in the IP113SLF are designed in DSP approach with advance 0.25um technology; this results in high noise immunity and robust performance. The IP113SLF can be a 10/100BASE-TX to 100BASE-FX converter with an MII to connect to an external PHY for back up fiber application or an external MAC for web management application.
Parametrics
IP113SLF absolut maximum ratings: (1)Supply Voltage: -0.3V to Vcc+0.3V; (2)Input Voltage: -0.3V to Vcc+0.3V; (3)Output Voltage: -0.3V to Vcc+0.3V; (4)Storage Temperature: -55℃ to 125℃; (5)Ambient Operating Temperature (Ta): 0℃ to 70℃.
Features
IP113SLF features: (1)Built in 3 MACs; (2)Built in a 10/100BASE-TX/100BASE-FX Transceiver; (3)Built in a PHY for 100BASE-FX; (4)Built in a 3-port switch; (5)Support Pass Through mode for extreme low latency data forwarding; (6)Support special tag; (7)Support TS-1000; (8)Support two wires serial CPU interface for management; (9)Support RMON MIB Counters; (10)Support auto MDI-MDIX function (optional); (11)Support link fault pass through function between P01 and P02; (12)Support far end fault function (FEF pattern or OAM); (13)Built in power abnormal detection LED display; (14)Support EEPROM Configuration; (15)0.25u technology, 2.5/3.3V power; (16)Support Lead Free package (Please refer to the Order Information).

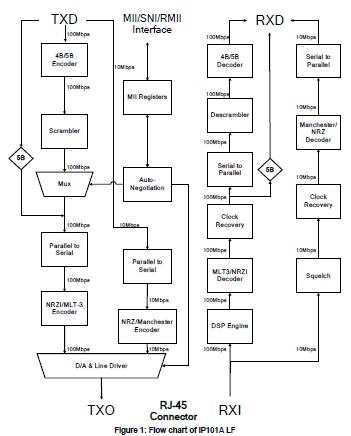

Diagrams
 |
