Product Summary

The SGM9110XC6 is a single rail-to-rail 3-pole output reconstruction filter with a -3dB bandwidth of 8MHz and a slew rate of 40V/μs. Operating from single supplies ranging from +2.5V to +5.5V and sinking an ultra-low 2.65mA quiescent current, the SGM9110XC6 is ideally suited for low power, battery-operated applications. The output swings within 100mV of GND and 170mV to V+ with a standard back-terminated video load (150Ω). The SGM9110XC6 employs an internal level shift circuit that avoids sync-pulse clipping and allows DC-coupled output. The applications of the SGM9110XC6 include Video amplifiers, Cable and Satellite set top boxes, Communications devices, Video on demand, Portable and handheld products, Personal video recorders, DVD players, HDTV.

Parametrics

SGM9110XC6 absolute maximum ratings: (1)Supply Voltage, V+ to V-: 7.5 V; (2)Input Voltage: GND -0.3 V to (+VS) +0.3V; (3)Storage Temperature Range: -65℃ to +150℃; (4)Junction Temperature: 160℃; (5)Operating Temperature Range: -40℃ to +125℃; (6)Power Dissipation, PD @ TA = 25℃, SC70-6: 0.3W; Package Thermal Resistance SC70-6, θJA: 330℃/W; (7)Lead Temperature Range (Soldering 10 sec): 260℃; (8)ESD Susceptibility, HBM: 1000V; MM: 400V.

Features

SGM9110XC6 features: (1)Low Cost; (2)Excellent Video Performance; (3)3-Pole Reconstruction Filter; (4)Internal Gain: 6dB; (5)Rail-to-Rail Output; (6)SAG Correction, Reduces AC Coupling Capacitor size; (7)Input Voltage Range Includes Ground, AC-Coupled Input; (8)Operates on 2.5 V to 5.5 V Single-Supplies; (9)Low Power, 2.65 mA Typical Supply Current; SGM9110 2μA when Disabled; (10)Small Packaging, SGM9110 Available in SC70-6.

Diagrams

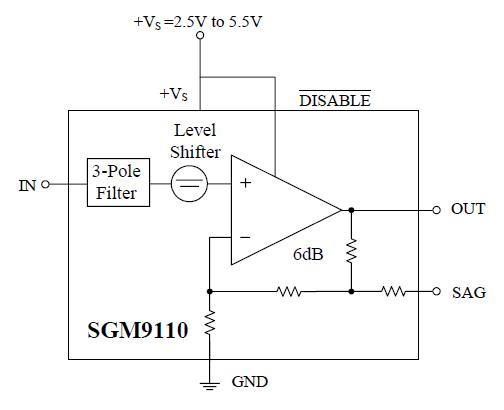

SGM9110XC6 block diagram
