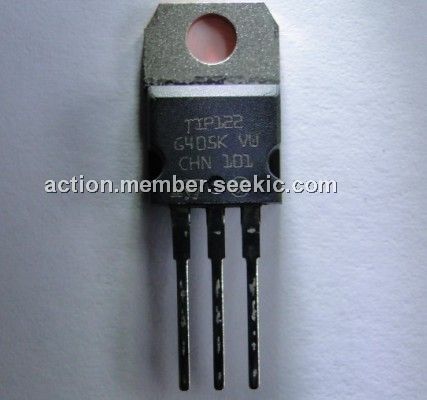

Product Summary

The TIP122 is a silicon Epitaxial-Base NPN power transistor in monolithic Darlington configuration mounted in Jedec TO-220 plastic package. The TIP122 is intented for use in power linear and switching applications.

Parametrics

TIP122 absolute maximum ratings: (1)VCBO, Collector-Base Voltage (IE = 0): 80V; (2)VCEO, Collector-Emitter Voltage (IB = 0): 80V; (3)VEBO, Emitter-Base Voltage (IC = 0): 5 V; (4)IC, Collector Current: 5 A; (5)ICM, Collector Peak Current: 8 A; (6)IB, Base Current: 0.1 A; (7)Ptot, Total Dissipation at Tcase ≤ 25℃: 62W; Tamb ≤ 25℃: 2W; (8)Tstg, Storage Temperature: -65 to 150℃; (9)Tj, Max. Operating Junction Temperature: 150℃.

Features

TIP122 features: (1)silicon Epitaxial-Base NPN power transistor; (2)in monolithic Darlington configuration mounted in Jedec TO-220 plastic package; (3)intented for use in power linear and switching applications.

Diagrams

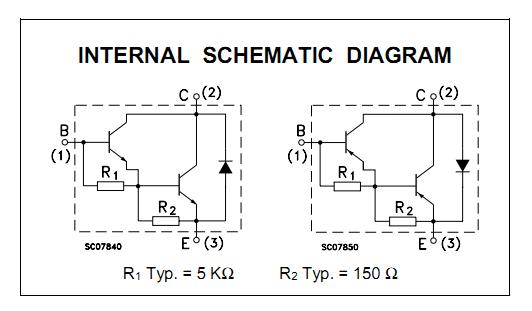

TIP122 block diagram
