Product Summary
The AMS1117-1.8 is an adjustable and fixed voltage regulator. It is designed to provide 1A output current and to operate down to 1V input-to-output differential. The dropout voltage of the AMS1117-1.8 is guaranteed maximum 1.3V at maximum output current, decreasing at lower load currents. The AMS1117-1.8 is pin compatible with other three-terminal SCSI regulators and are offered in the low profile surface mount SOT-223 package, in the 8L SOIC package and in the TO-252 (DPAK) plastic package.
Parametrics
AMS1117-1.8 absolute maximum ratings: (1)Power Dissipation: Internally limited; (2)Input Voltage: 15V; (3)Operating Junction Temperature: Control Section: 0 to 125℃; Power Transistor: 0 to 150℃; (4)Storage temperature: -65 to +150℃; (5)soldering information lead temperature(25 sec): 265℃; (6)thermal resistance: SO-8 package: φJA= 160℃/W; TO-252 package: φJA= 80℃/W; SOT-223 package: φJA= 90℃/W.
Features
AMS1117-1.8 features: (1)Three Terminal Adjustable or Fixed Voltages 1.5V, 1.8V, 2.5V, 2.85V, 3.3V and 5.0V; (2)Output Current of 1A; (3)Operates Down to 1V Dropout; (4)Line Regulation: 0.2% Max; (5)Load Regulation: 0.4% Max; (6)SOT-223, TO-252 and SO-8 package available.

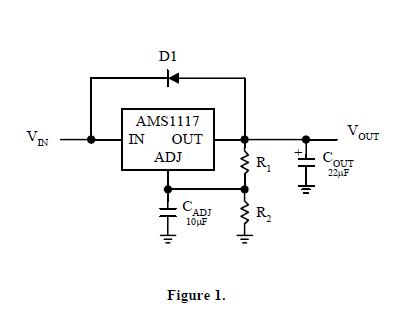

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 AMS1117-1.8 |
Other |
|
Data Sheet |
Negotiable |
|
||||
