Product Summary

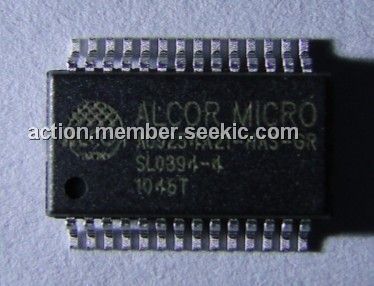

The AU9254A21-HAS-GR is an integrated single chip USB hub controller designed for the emerging industry-standard Universal Serial Bus (USB). The AU9254A21-HAS-GR supports four USB downstream ports. Each downstream port has power switch control, and over-current sensing. Single chip integration makes the AU9254A21-HAS-GR the most cost effective stand-alone USB hub solution available in the market. Downstream ports can be used to connect various USB peripheral devices, such as USB printers, modems, scanners, cameras, mice, or joysticks to the system without adding external glue logic.

Parametrics

AU9254A21-HAS-GR absolute maximum ratings: (1)Power Supply, VCC: -0.3 to 6.0 V; (2)Input Voltage, VIN: -0.3 to VCC +0.3 V; (3)Output Voltage, VOUT: -0.3 to VCC +0.3 V; (4)Storage Temperature, TSTG: -40 to 125℃.

Features

AU9254A21-HAS-GR features: (1)Fully compliant with the Universal Serial Bus Specification, version 1.1; (2)USB hub design is compliant with Universal Serial Bus Hub Specification, revision 1.1; (3)Single chip integrated USB hub controller with embedded proprietary processor; (4)Supports four bus-powered/self-powered downstream ports; (5)Built-in 3.3v voltage regulator allows single +5V operating voltage, resulting in reduced overall system cost; (6)Runs at 12Mhz frequency; (7)28-pin SSOP package, both normal size (body size 209 mil) and smaller size (body size 150 mil) are available.

Diagrams

<IMG border=0 alt="AU9254A21-HAS-GR block diagram" src="http://www.seekic.com/uploadfile/ic-mfg/201210292575265.jpg">
