Product Summary
The FT2232D is an updated version of FTDI 3rd generation USB UART / FIFO I.C. This device features two Multi-Purpose UART / FIFO controllers which can be configured individually in several different modes. The applications of the FT2232D include USB to Dual Port RS232 Converters, USB to Dual Port RS422 / RS485 Converters, Upgrading Legacy Peripheral Designs to USB, USB Instrumentation, USB JTAG Programming.
Parametrics
FT2232D absolute maximum ratings: (1)Storage Temperature: -5℃ to + 150℃; (2)Floor Life (Out of Bag) at Factory Ambient (30℃/60% Relative Humidity): 192 Hours; (3)Ambient Temperature (Power Applied): -40℃ to + 85℃; (4)VCC Supply Voltage: -0.5V to +6.00V; (5)DC Input Voltage - Inputs: -0.5V to VCC + 0.5V; (6)DC Input Voltage - High Impedance Bidirectionals: -0.5V to VCC + 0.5V; (7)DC Output Current-Outputs: 24mA; (8)DC Output Current-Low Impedance Bidirectionals: 24mA; (9)Power Dissipation (VCC = 5.25V): 500mW; (10)Electrostatic Discharge Voltage (Human Body Model) (I < 1μA): +/- 3000V; (11)Latch Up Current (Vi = +/- 10V maximum, for 10 ms): +/-200mA.
Features
FT2232D features: (1)Single chip USB to dual channel serial / parallel ports with a variety of configurations.; (2)Entire USB protocol handled on the chip no USB specific firmware programming required.; (3)FT232B-style asynchronous serial UART interface option with full hardware handshaking and modem interface signals.; (4)UART Interface supports 7 / 8 bit data, 1 / 2 stop bits, and Odd / Even / Mark / Space / No Parity; (5)Fully assisted hardware or X-On / X-Off software handshaking.

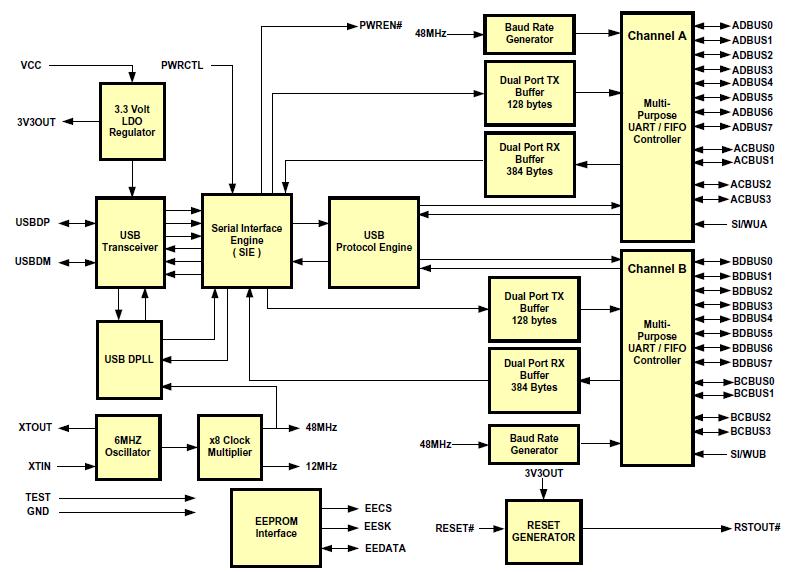

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FT2232D |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
FT2232D-REEL |
FTDI |
USB Interface IC USB to Dual UART/ FIFO/SPI/JTAG/I2C |
Data Sheet |
|
|
||||||||||||
