Product Summary

The FZT458TA is an NPN silicon planar high voltage transistor.

Parametrics

FZT458TA absolute maximum ratings: (1)Collector-Base Voltage, VCBO: 400 V; (2)Collector-Emitter Voltage, VCEO: 400 V; (3)Emitter-Base Voltage, VEBO: 5 V; (4)Continuous Collector Current, IC: 300 mA; (5)Peak Pulse Current, ICM: 1 A; (6)Base Current, IB: 200 mA; (7)Power Dissipation at Tamb= 25℃, Ptot: 2 W; (8)Operating and Storage Temperature Range, Tj, Tstg: -55 to +150℃.

Features

FZT458TA features: (1)400 Volt VCEO; (2)PARTMARKING DETAIL-FZT458.

Diagrams

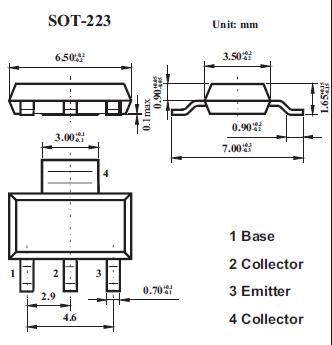

FZT458TA block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FZT458TA
FZT458TA
Diodes Inc.
Transistors Bipolar (BJT) NPN High Voltage
Data Sheet
0-1: $0.38
1-25: $0.30
25-100: $0.28
100-250: $0.21
250-1000: $0.16
