Product Summary

The HCNR201-000E is a High-Linearity Analog Optocoupler. It consists of a high-performance AlGaAs LED that illuminates two closely matched photodiodes.

Parametrics

Absolute maximum ratings: (1)Storage Temperature:-55℃ to +125℃; (2)Operating Temperature:-55℃ to +100℃; (3)Junction Temperature:125℃; (4)Lead Solder Temperature:260℃ for 10s(up to seating plane); (5)Average Input Current:25 mA; (6)Peak Input Current:40 mA(50 ns maximum pulse width); (7)Reverse Input Voltage:2.5 V(IR = 100 μA, Pin 1-2); (8)Input Power Dissipation:60 mW @ TA = 85℃(Derate at 2.2 mW/℃ for operating temperatures above 85℃); (9)Reverse Output Photodiode Voltage:30 V; (10)Reverse Input Photodiode Voltage:30 V.

Features

Features: (1)Low Nonlinearity: 0.01%; (2)K3 (IPD2/IPD1) Transfer Gain:±5%; (3)Low Gain Temperature Coefficient:-65ppm/℃; (4)Wide Bandwidth-DC to >1 MHz; (5)Surface Mount Option Available(Option #300); (6)8-Pin DIP Package - 0.400" Spacing; (7)Allows Flexible Circuit Design.

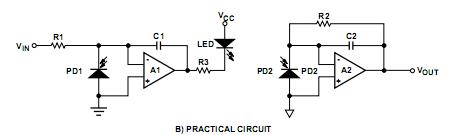

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
HCNR201-000E
HCNR201-000E

Avago Technologies

High Linearity Optocouplers 1 Ch 60mW 25mA

Data Sheet

0-1: $2.92
1-25: $2.39
25-100: $2.12
100-250: $1.91
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
HCNR200
HCNR200

Avago Technologies

High Linearity Optocouplers 1 Ch 60mW 25mA

Data Sheet

0-190: $1.60
190-250: $1.43
250-500: $1.36
500-1000: $1.28
HCNR200#050
HCNR200#050

Avago Technologies

High Linearity Optocouplers 1 Ch 60mW 25mA

Data Sheet

0-190: $1.62
190-250: $1.46
250-500: $1.38
500-1000: $1.30
HCNR200#300
HCNR200#300

Avago Technologies

High Linearity Optocouplers 1 Ch 60mW 25mA

Data Sheet

0-190: $1.62
190-250: $1.46
250-500: $1.38
500-1000: $1.30
HCNR200#350
HCNR200#350

Avago Technologies

High Linearity Optocouplers 1 Ch 60mW 25mA

Data Sheet

0-190: $1.64
190-250: $1.48
250-500: $1.40
500-1000: $1.31
HCNR200#500
HCNR200#500

Avago Technologies

High Linearity Optocouplers 1 Ch 60mW 25mA

Data Sheet

0-420: $1.46
420-500: $1.38
500-750: $1.38
750-1000: $1.30
HCNR200#550
HCNR200#550

Avago Technologies

High Linearity Optocouplers 1 Ch 60mW 25mA

Data Sheet

0-420: $1.48
420-500: $1.40
500-750: $1.40
750-1000: $1.31
