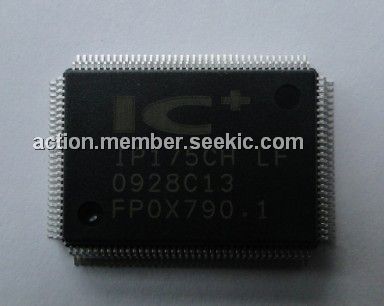

IP175CHLF

IP175CHLF, 5 Port 10/100 Ethernet Integrated Switch, QFP, 4V, 25MHz, IC Plus Corp

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~100.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~100.00

PartNumber:: IP175CHLF

Brand:: IC Plus Corp - IC Plus | Pack: QFP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Daisy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-09

From Other Seller

Part Number:IP175CHLF
US $0.10 - 100.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

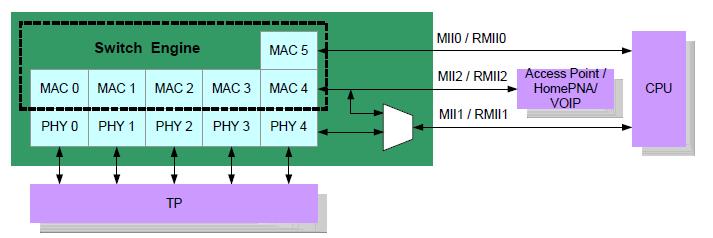

The IP175CHLF is a 6-port switch controller, SSRAM, and 5 10/100 Ethernet transceiver. The transceiver complies with the IEEE802.3, IEEE802.3u, and IEEE802.3x specifications. The DSP approach is utilizedfor designing transceivers with 0.18um technology; it has high noise immunity and robust performance. The IP175CHLF operates in store and forward mode. It supports flow control, auto MDI/MDI-X, CoS, port base VLAN, bandwidth control, DiffServ, SMART MAC and LED functions, etc. Eachport can be configured to auto-negotiation or forced 10M/100M, full/half duplexmode. Using an EEPROM or pull up/down resistors on specified pins can configure the desired options.

Parametrics

IP175CHLF absolute maximum ratings: (1)Supply Voltage: -0.3V to 4.0V; (2)Input Voltage: -0.3V to 5.0V; (3)Output Voltage: -0.3V to 5.0V; (4)Storage Temperature: -65℃ to 150℃; (5)Ambient Operating Temperature (Ta): 0℃ to 70℃.

Features

IP175CHLF features: (1)IP175A PCB compatible (pins compatible); (2)Built in 6 MAC and 5 PHY; (3)Each port can be configured to be 10Base-T, 100Base-TX; (4)2k MAC address; (5)384k bits packet buffer memory; (6)Support auto-polarity for 10Mbps; (7)Filter/ forward reserved address option; (8)Broadcast storm protection; (9)Auto MDI-MDIX; (10)Support three MII/RMII ports; (11)Support SMI with MDC up to 12.5 Mhz; (12)Support tagging & un-tagging; (13)Support Port base VLAN & tag VLAN; (14)Support CoS; (15)Support port security option; (16)Support SMART MAC function; (17)Support spanning tree protocol; (18)Max packet length 1552/ 1536 bytes; (19)Support 8-level bandwidth control; (20)Support Link quality LED for 100Mbps; (21)Support direct, serial and dual color mode LED; (22)Support one fiber port with far end fault function for IP175CH only; (23)Built in linear regulator control circuit; (24)Low power consumption; (25)0.18um, 128-pin PQFP; (26)Support Lead Free package (Please refer to the Order Information).
