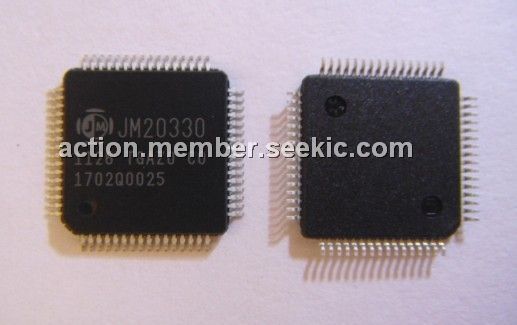

Product Summary
The jm20330apco-tgca is a single chip solution for serial and parallel ATA translation. The jm20330apco-tgca includes the Serial ATA PHY, Link, Transport, and Parallel ATA (application layer) controller. The Serial ATA physical, link, and transport layers are compliant to Serial ATA 1.0. The jm20330apco-tgca supports a 1.5GHz data rate, and scalable to 3.0 GHz data rate by directly doubling the internal clock source. The application layer supports both the ATA register command set and PACKET command set, which could drive both Hard Disk Drive and ATAPI Optical Storage such as CR-ROM, CD-RW, DVD-ROM, DVD-RW, etc. The Serial ATA and the Parallel ATA application layer support both host and device operation and can be configured through a single pin.
Parametrics
jm20330apco-tgca absolute maximum ratings: (1)Signal Bit Rate: 3.0/1.5Gbps; (2)Power Supply: 3.3V and 1.8V; (3)ESD Protection: 2000 V.
Features
jm20330apco-tgca features: (1)Serial ATA 1.0 Specification compliant; (2)Automatic Serial ATA 3.0/1.5 Gbps speed negotiation; (3)ATA/ATAPI PIO mode 0 to 4; (4)ATA/ATAPI Ultra DMA of transfer rate 16.7, 25, 33, 48, 66, 100, 133, and 150MB/s; (5)ATA/ATAPI LBA48 addressing mode associated with 2-byte sector count; (6)Support Serial ATA hot-plug; (7)Ultra low power consumption; (8)Support 20MHz, 25MHz, 30MHz or 40MHz; (9)Reference Clock; (10)Support Partial/Slumber power management; (11)Provide adjustable TX signal amplitude and; (12)pre-emphasis level; (13)Master/Slave support.

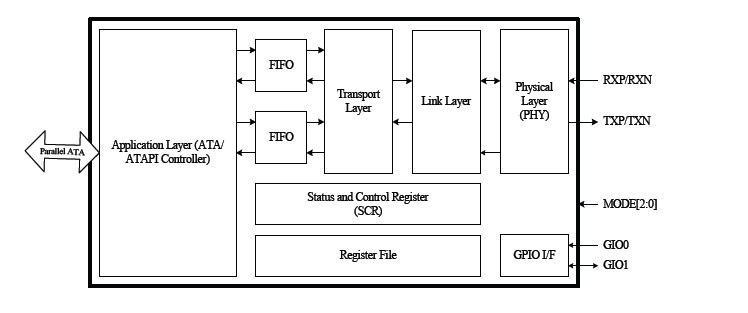

Diagrams
 |
